Apr 042020

VMware Horizon View Icon

I see quite a bit of traffic come in on a regular basis pertaining to issues with VMware Horizon View. A lot of these visitors either are looking for help in setting something up or are experiencing an issue I’ve dealt with. While my posts usually help these people do specific things or troubleshoot specific issues, one of the biggest issues that comes up is when users experience a VMware Horizon blank screen (or black).

This can be caused by a number of different things. I wanted to take this opportunity to go over some of the most common issues that cause this and make a master guide for troubleshooting and fixing the VMware Horizon blank screen.

Horizon Blank Screen Causes

There’s a number of different causes of a blank or black screen when connecting and establishing a VDI session to Horizon View. Click on the item below to jump to that section of the post.

Now that we have a list, let’s dive in to each of these individually. Some of these will require you to do your own research and will only guide you, while other sections will include the full fix for the issue.

VMware Tools and Horizon Agent Installation Order

When deploying the VMware Horizon View agent, you are required to install the agent, along with VMware tools in a specific order. Failing to do so can cause problems, including a blank screen screen.

The installation order:

  1. Install GPU/vGPU drivers (if needed)
  2. Install VMware Tools Agent
  3. Install the VMware Horizon Agent
  4. Install the VMware User Environment Manager Agent (if needed)
  5. Install the VMware App Volumes Agent (if needed)

It is important to also consider this when upgrading the agents as well.

Network ports are blocked (Computer Firewall, Network Firewall)

For the VMware Horizon agent to function properly, ports must be accesible through your firewall, whether it’s the firewall on the VM guest, client computer, or network firewall.

The following ports are required for the VMware Horizon Agent when connecting directly to a View Connection Server.

DestinationNetwork ProtocolDestination PortDetails
Horizon Connection ServerTCP443Login, authentication, and connection to the VMware Connection Server.
Horizon AgentTCP22443Blast Extreme
UDP22443Blast Extreme
TCP4172PCoIP
UDP4172PCoIP
TCP3389RDP (Remote Desktop Protocol)
TCP9427Client Shared Drive redirection (CDR) and Multi-media redirection (MMR).
TCP32111USB Redirection (Optional), can be incorporated in to the Blast Extreme connection.
Network Ports Required for VMware Horizon View to View Connection Server

The following ports are required for the VMware Horizon Agent when connecting through a VMware Unified Access Gateway (UAG).

DestinationNetwork ProtocolDestination PortDetails
Unified Access GatewayTCP443Login, authentication, and connection to the Unified Access Gateway. This port/connection can also carry tunneled RDP, client drive redirection, and USB redirection traffic.
TCP4172PCoIP via PCoIP Secure Gateway
UDP4172PCoIP via PCoIP Secure Gateway
UDP443Optional for Login traffic. Blast Extreme will attempt a UDP login if there are issues establishing a TCP connection.
TCP8443Blast Extreme via Blast Secure Gateway (High Performance connection)
UDP8443Blast Extreme via Blast Secure Gateway (Adaptive performance connection)
TCP443Blast Extreme via UAG port sharing.
Network Ports Required for VMware Horizon View to VMware Unified Access Gateway (UAG)

You’ll notice the ports that are required for Blast Extreme and PCoIP. If these are not open you can experience a blank screen when connecting to the VMware Horizon VDI Guest VM.

For more information on VMware Horizon 7 network ports, visit https://techzone.vmware.com/resource/network-ports-vmware-horizon-7.

DNS Issues

While VMware Horizon View usually uses IP address for connectivity between the View Connection Server, guest VM, and client, I have seen times where DNS issues have stopped certain components from functioning properly.

It’s always a good idea to verify that DNS is functioning. DNS (forward and reverse) is required for VMware Horizon Linux guests VMs.

Incorrectly configured Unified Access Gateway

A big offender when it comes to blank screens is an incorrectly configured VMWare Unified Access Gateway.

Sometimes, first-time UAG users will incorrectly configure the View Connection server and UAG.

When configuring a UAG, you must disable both “Blast Secure Gateway”, and “PCoIP Secure Gateway” on the View Connection Server, as the UAG will be handling this. See below.

Picture of the Secure Gateway settings on VMware Horizon View Connection Server when used with VMware UAG.
Secure Gateway Settings on View Connection Server when used with UAG

Another regular issue is when admins misconfigure the UAG itself. There are a number of key things that must be configured properly. These are the values that should be populated on the UAG under Horizon Settings.

Connection Server URLhttps://ConnectionServerIP:443
Connection Server URL Thumbprintsha1=SSLTHUMPRINT
(Thumbprint of the SSL certificate your View Connection Server is using)
PCOIP External URLUAG-EXTERNALIP:4172
Blast External URLUAG-InternetFQDN:443
Tunnel External URLUAG-InternetFQDN:443

You must also have a valid SSL certificate installed under “TLS Server Certificate Settings”. I’d recommend applying it to both the admin and internal interface. This is a certificate that must match the FQDN (internal and external) of your UAG appliance.

Once you’re good, you’re green!

Picture of the VMware UAG interface showing all green (functioning).
VMware Unified Access Gateway showing valid

You should always see green lights, all protocols should work, and the connections should run smooth. If not, troubleshoot.

GPU Driver Issue

When using a GPU with your VM for 3D graphics, make sure you adhere to the requirements of the GPU vendor, along with the VMware requirements.

Some vendors have display count, resolution, and other limits that when reached, cause Blast Extreme to fail.

An incorrectly installed driver can also cause issues. Make sure that there are no issues with the drivers in the “Device Manager”.

VMware documents regarding 3D rendering:

Blast Extreme log files can be found on the guest VM in the following directory.

C:\ProgramData\VMware\VMware Blast\

Looking at these log files, you can find information that may pertain to the H.264 or display driver issues that will assist in troubleshooting.

VMware Tools

A corrupt VMware tools install, whether software or drivers can cause display issues. Make sure that the drivers (including the display driver) are installed and functioning properly.

It may be a good idea to completely uninstall VMware Tools and re-install.

If you’re experiencing display driver issues (such as a blank screen), before re-installing VMware Tools try forcibly removing the display driver.

  1. Open “Device Manager”
  2. Right click on the VMware Display adapter and open “Properties”
  3. On the “Driver” tab, select “Uninstall”
  4. Check the box for “Delete the driver software for this device”.

This will fully remove the VMware driver. Now re-install VMware Tools.

Horizon Agent

Often, re-installing the Horizon Agent can resolve issues. Always make sure that VMware Tools are installed first before installing the Horizon Agent.

Make sure that if you are running 64-bit Windows in the VM then you install and use the 64-bit Horizon Agent.

You may experience issues with the “VMware Horizon Indirect Display Driver”. Some users have reported an error on this driver and issues loading it, resulting in a blank screen. To do this, I’d recommend forcibly uninstalling the driver and re-installing the Horizon Agent.

To forcibly remove the “VMware Horizon Indirect Display Driver”:

  1. Open “Device Manager”
  2. Right click on the “VMware Horizon Indirect Display Driver” and open “Properties”
  3. On the “Driver” tab, select “Uninstall”
  4. Check the box for “Delete the driver software for this device”.

Now proceed to uninstall and reinstall the Horizon View Agent.

On a final note, when running the Horizon Agent on Horizon for Linux, make sure that forward and reverse DNS entries exist, and that DNS is functioning on the network where the Linux VM resides.

Video Settings (Video Memory (VRAM), Resolution, Number of Displays)

When experiencing video display issues or blank screens on VMware Horizon View, these could be associated with the guest VM’s memory, video memory (VRAM), display resolution, and number of displays.

Make sure you are adhering to the specifications put forth by VMware. Please see the following links for more information.

Protocol

When troubleshooting blank screens with VMware Horizon, you need to try to identify if it’s specific to the guest VM, or if it’s associated with the connection protocol you’re using (and the route it takes whether through a Connection Server, or UAG).

Always try different protocols to see if the issue is associated with all, or one. Then try establishing connections and find if it’s isolated direct to the Connection Server, or through the UAG.

If the issue is with a specific protocol, you can view the protocol log files. If the issue is with the UAG, you can troubleshoot the UAG.

Log files can be found in the following directory:

C:\ProgramData\VMware\

HTTPS Proxy and redirection issues

If you are connecting through a network that does passive HTTPS scanning or that uses a proxy server, you may experience issues with inability to connect, or blank screens.

You’ll need to modify your firewall or proxy to allow the VMware connection and open the required ports for VMware Horizon View.

Login banner or disclaimer (PCoIP)

I haven’t seen or heard of this one in some time, but when using VMware Horizon with PCoIP, sessions can fail or show a blank screen when the legal disclaimer login banner is used.

For more information on this issue, and how to resolve or workaround, visit https://kb.vmware.com/s/article/1016961.

Old version of Horizon View

It never stops surprising me how old some of the VMware Horizon View environments are that some businesses are running. VMware regularly updates, and releases new versions of VMware Horizon View that resolve known issues and bugs in the software.

While it may be difficult, simply upgrading your VMware Horizon environment (VMware vSphere, View Connection Server, VMware Tools, VMware Horizon Agent) can resolve your issues.

Blank Screen connecting to Physical PC running Horizon Agent

When you install the VMware Horizon Agent on a Physical PC, you may encounter issues with a blank screen.

This is usually caused by:

After troubleshooting these issues, you should be able to resolve the issue.

Conclusion

As you can see there are a number of different things that can cause Horizon View to show a blank screen on login.

Let me know if this helped you out, or if you find other reasons and feel I should add them to the list!

Mar 222020

Microsoft Remote Desktop Services Logo

In the last few months, the crisis with COVID19 has put organizations in a panic to enable employees to be able to work from home, to continue business productivity, keep employees safe, and keep employees on the payroll. It’s good for business, and it’s good for employees to avoid layoffs so everyone keeps their jobs.

This has put IT departments and IT professionals in a hectic position where they must roll out and deploy remote access technologies on the fly, often with little or no notice.

I’ve heard horror stories where organization leadership has made decisions without consulting IT which resulted in the inability to work, also where organizations didn’t involve their IT teams in strategizing and planning moving forward.

Business executive giving directive on IT

In this post I’m going to outline the most efficient way to rapidly deploy Remote Desktop Services (RDS) for employee remote access.

Remote Access Technologies

There’s a number of different remote access technologies and software packages available today. Some are designed to allow you to work fully remotely (providing a remote desktop to office resources), and some are designed to provide access to specific resources remotely (such as documents, files, etc).

The main technologies typically used for remote access include:

The main software packages that enable a remote workforce include:

  • Microsoft Office 365
  • Microsoft 365
  • Skype for Business
  • Microsoft Teams
  • Zoom
  • Numerous other applications and cloud suites

Every technology or application has it’s purpose and is deployed depending on the business requirements, however in this specific situation we need a solution that is easy and fast to deploy.

For most small to medium sized businesses, Remote Desktop Services would be the easiest solution to roll out on such short notice.

Remote Desktop Services (RDS)

Remote Desktop Services is a server/client technology that allows the client to connect to the server, and have access to a full Windows desktop that’s actually running on the server itself.

These sessions are encrypted, secure, and essentially brings the display to the connecting client, and brings back mouse and keyboard feedback.

With Remote Desktop Services, you’re maintaining one Windows Server that provides multiple concurrent sessions for multiple concurrent users. You can install software packages (database applications, Microsoft Office 365, and other line of business applications), and make them available to the connecting users.

Even users who are accessing large files have a beautiful experience since the data never leaves your IT environment, only the sessions display is transmitted.

This works great for home users who have slow internet connections, users who are travelling, or using their cell networks LTE connection to connect.

For administrators, it provides an easy way to manage a desktop experience for multiple users by maintain a single server. There are also many additional controls you can implement to limit access and optimize the experience.

What’s required

When deploying RDS, you’ll need the following:

  • A dedicated Server or dedicated Virtual Machine running Microsoft Windows Server to be configured as a Remote Desktop Services server.
  • Remote Desktop Services CALs (Client Access Licenses – One CAL is required for each user or device)
  • A high speed internet connection (that can handle multiple RDS sessions)
  • A firewall to protect the RDS Server and preferably 2FA/MFA logins
  • A Static IP and DNS entries to make the server available to the internet and your users

You’ll want the RDS server to be dedicated strictly to Remote Desktop Services sessions. You will not want to run any other servers or services on this server or virtual machine.

You will need to purchase RDS CALs. A Remote Desktop Services Client access license, is required for every device or user you have connected to your RDS server. During your initial purchase of RDS CALs, you must choose between user count based licensing, or device count based licensing. If you need help with licensing Microsoft Remote Desktop Services, please feel free to reach out to me.

The connections between the server and client consist of an encrypted presentation of the display, as well as mouse/keyboard feedback, and other peripherals. For a single session it’s not much, which means your users don’t ultra fast internet connections. However, on the server side if you are running multiple sessions, the bandwidth requirements add up.

Remote Desktop Services servers are often under attack on the internet. You’ll find that the servers are subjected to scans, brute force attempts, and exploit execution. You’ll want to make sure that you have both a firewall (with intrusion prevention) and a security technology like DUO Security Two Factor Authentication configured to protect your server.

Finally, you’ll need a static IP on the internet and a friendly DNS hostname for your employees to connect to using the Remote Desktop Protocol (RDP) Client, such as “remote.companyname.com”.

Deploying RDS

Deploying RDS is easy. Here is a brief summary of the steps to rapidly deploy a Remote Desktop Services server for remote access.

  1. Install Windows Server on the server or virtual machine that will host RDS.
  2. Configure networking (static IP) and join to domain.
  3. Using the server manager, add the Remote Desktop Services role.
  4. Configure Remote Desktop Services and Remote Desktop Web Access
  5. Configure an SSL Certificate
  6. Configure user session settings
  7. Install user software on the RDS Server (Including Office 365, Line of Business applications, and others)
  8. Configure ACLs (Access Control) to secure user access.
  9. Test
  10. Move to production

Even with limited to no experience with Remote Desktop Services, an IT professional will be able to deploy the first server within hours. A focus must be paid to securing the environment, performance enhancements can be made later after deployment.

Please note that special steps are required when you install Office 365 in a Remote Desktop Services Environment.

Microsoft has a detailed deployment guide available here: https://docs.microsoft.com/en-us/windows-server/remote/remote-desktop-services/rds-deploy-infrastructure

Security Considerations

As mentioned above, your RDS server will be subject to ongoing attacks. These attacks include vulnerability scans, bruteforce attempts, and targeted exploitation attempts.

  • You’ll want to make sure that you have and enforce strict password policies to stop bruteforce attempts.
  • A firewall should be implemented that includes an intrusion prevention system to identify and stop intrusion attempts.
  • You should implement two factor authentication using a product like Duo from Duo Security.

Your new RDS server while enabling a mobile workforce, also substantially increases your security footprint. Considerations must always be made and factored in when deploying internet available services.

Below is a video demo of what Duo Security Two Facter authentication looks like when logging in to an RDP session.

Duo Security Two Factor Authentication on Remote Desktop Services RDS Demo

Optimizations

There’s a fair number of optimizations which can be made in an RDS environment. I’m going to cover a few of the most widely used below.

Please note, you should also configure the RDS Group Policy Objects (GPO) as well.

Folder Redirection

While most data should be stored on network shares, we often find that users will store data and files on their Desktop and My Documents.

If you have available and extra storage, you can enable Desktop and My Documents Folder redirection. This will redirect users Desktop’s and My Document’s folders to a network share. On local computers on your network, the computers will retain a cached copy for performance.

If you deploy an RDS Server and have Folder redirection configured, the users My Documents and Desktop will be available to that user. Additionally since the server is on the same network as the share hosting the data, the RDS server will not retain a local cached copy (saving space).

If you are considering implementing and turning on Folder Redirection, I would recommend doing so before deploying an RDS Server (especially before a user logs in for the first time).

Anti-virus and Endpoint Protection

Careful consideration must be made when choosing the antivirus and endpoint protection software for your RDS environment.

First, you must make sure that your antivirus and/or endpoint protection vendor supports Remote Desktop Services, and then also deploy their recommended settings for that type of environment.

A proper endpoint protection solution should run few processes for all users, and not individual processes for each user.

Service Delivery

For continued service delivery, your IT staff must monitor and maintain the server. This includes monitoring logs, updating it via Windows Update, and updating the various applications your users are using.

IT professional working on organization infrastructure including Remote Desktop Services RDS

As the environment grows, you can deploy additional RDS Servers and create an RDS Farm. If you get to this point you’ll be able to deploy a load balancer and grow as more performance is required, or additional users are brought online.

Conclusion

Deploying a Remote Desktop Services server is a great way to get a large number of users online and working remotely in a short amount of time. This keeps management happy, employees happy, and maintains a productive workforce.

Employee working remotely from home using Remote Desktop Services

As I mentioned, there are numerous other technologies so depending on what your company has already implemented or is using, may change what solution would be best for you.

If you have any questions or require help or assistance with deploying Remote Desktop Services for your organization, don’t hesitate to reach out to me!

Leave a comment with some feedback!

Mar 142020

DUO

Want to see DUO Two-Factor Authentication in action? I’ve created a number of demo videos showing DUO 2FA being used on numerous different platforms. You can see how DUO works with these platforms, and the experience a user can expect when using two-factor authentication from Duo Security.

Duo 2FA is a great way to secure your environment whether it’s servers, workstations, VDI, firewalls, or even WordPress!

And remember, I sell Duo licensing and provide consulting services to help set it up!

The following video playlist contains:

Video demo playlist

Duo Security Two-Factor Authentication Product Demo

Feel free to reach out to me if you need a quote, want to buy, or need help implementing Duo Security Two-Factor Authentication!

Don’t forget to check out my corporate blog post to “Secure your business and enterprise IT systems with Multi Factor Authentication (MFA)“!

For more content on my blog on Duo Security, visit: https://www.stephenwagner.com/category/duo-mfa/

For more content on my corporate blog on Duo Security, visit: https://www.digitallyaccurate.com/blog/category/vendors/duo-security/

To visit Duo Security’s website, visit: https://duo.com/

May 072019

VMware Horizon View Icon

So you’ve started to use or test Duo Security’s MFA/2FA technology on your network. You’ve been happy so far and you now want to begin testing or rolling out DUO MFA on your VMware Horizon View server.

VMware Horizon is great at providing an end user computing solution for your business, a byproduct of which is an amazing remote access system. With any type of access, especially remote, comes numerous security challenges. DUO Security’s MFA solution is great at provided multi-factor authentication for your environment, and fully supports VMware Horizon View.

In this guide, I’ll be providing a quick how to guide on how to get setup and configured with DUO MFA on your Horizon Server to authenticate View clients.

Here’s a video of DUO on VMware Horizon View in action! Scroll down for instructions on how to set it up!

Video Demonstration of DUO MFA 2FA on VMware Horizon View

Enabling DUO MFA on VMWare View will require further authentication from your users via one of the following means:

  • DUO Push (Push auth request to mobile app)
  • Phone call (On user’s pre-configured phone number)
  • SMS Passcode (Texted to users pre-configured phone number)
  • PIN code from a Hardware Token

For more information on the DUO technology and authentication methods, please visit
https://www.digitallyaccurate.com/blog/2018/06/12/secure-business-enterprise-it-systems-multi-factor-authentication-duo-mfa/

Prerequisites

  • VMware Horizon View Connection Server (Configured and working)
  • VMware View Client (for testing)
  • DUO Authentication Proxy installed, configured, and running (integrated with Active Directory)
  • Completed DUO Auth Proxy config along with “[ad_client]” as primary authentication.

Please Note: For this guide, we’re going to assume that you already have a Duo Authentication Proxy installed and fully configured on your network. The authentication proxy server acts as a RADIUS server that your VMware Horizon View Connection Server will use to authenticate users against.

Instructions

The instructions will be performed in multiple steps. This includes adding the application to your DUO account, configuring the DUO Authentication Proxy, and finally configuring the VMware View Connection Server.

Add the application to your DUO account

  1. Log on to your DUO account, on the left pane, select “Applications”.
  2. Click on the Blue button “Protect an Application”.
  3. Using the search, look for “VMware View”, and then select “Protect this Application”.
  4. Record the 3 fields labelled “Integration key”, “Security key”, and “API hostname”. You’ll need these later on your authentication proxy.
  5. Feel free to modify the Global Policy to the settings you require. You can always change and modify these later.
  6. Under Settings, we’ll give it a friendly name, choose “Simple” for “Username normalization”, and optionally configure the “Permitted Groups”. Select “Save”.

Configure the DUO Authentication Proxy

  1. Log on to the server that is running your DUO Authentication Proxy.
  2. Open the file explorer and navigate to the following directory.
    C:\Program Files (x86)\Duo Security Authentication Proxy\conf
  3. Before any changes I always make a backup of the existing config file. Copy and paste the “authproxy.cfg” file and rename the copy to “authproxy.cfg.bak”.
  4. Open the “authproxy.cfg” file with notepad.
  5. Add the following to the very end of the file:
    ;vmware-view
    [radius_server_challenge]
    ikey=YOUR_INTEGRATION_KEY
    skey=YOUR_SECRET_KEY
    api_host=YOUR-API-ADDRESS.duosecurity.com
    failmode=safe
    client=ad_client
    radius_ip_1=IP-ADDY-OF-VIEW-SERVER
    radius_secret_1=SECRETPASSFORDUOVIEW
    port=1813
    Using the values from the “Protect an Application”, replace the “ikey” with your “integration key”, “skey” with your “secret key”, and “api_host” with the API hostname that was provided. Additionally “radius_ip_1” should be set to your View Connection Server IP, and “radius_secret_1” is a secret passphrase shared only by DUO and the View connection server.
  6. Save the file.
  7. Restart the DUO Authentication Proxy either using Services (services.msc), or run the following from a command prompt:
    net stop DuoAuthProxy & net start DuoAuthProxy

Configure the VMware View Connection Server

  1. Log on to your server that runs your VMware View Connection Server.
  2. Open the VMware Horizon 7 Administrator web interface and log on.
    Horizon 7 Administrator Launch Icon Screenshot
  3. On the left hand side, under “Inventory”, expand “View Configuration” and select “Servers”.
    View Configuration and Servers highlighted on Left Pane

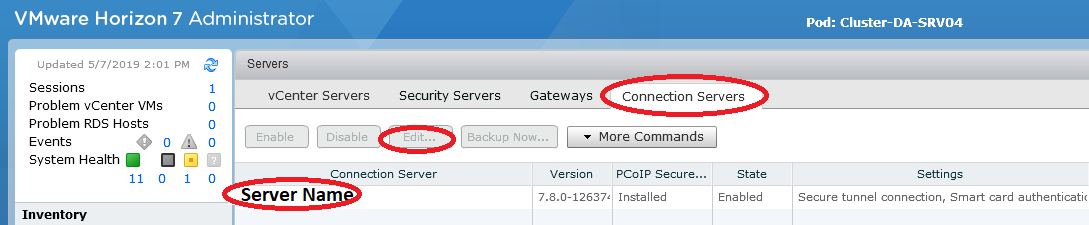

  4. On the right hand side in the “Servers” pane, click on the “Connection Servers” tab, then select your server, and click “Edit”.
    Select Connection Server in Server Pane Window

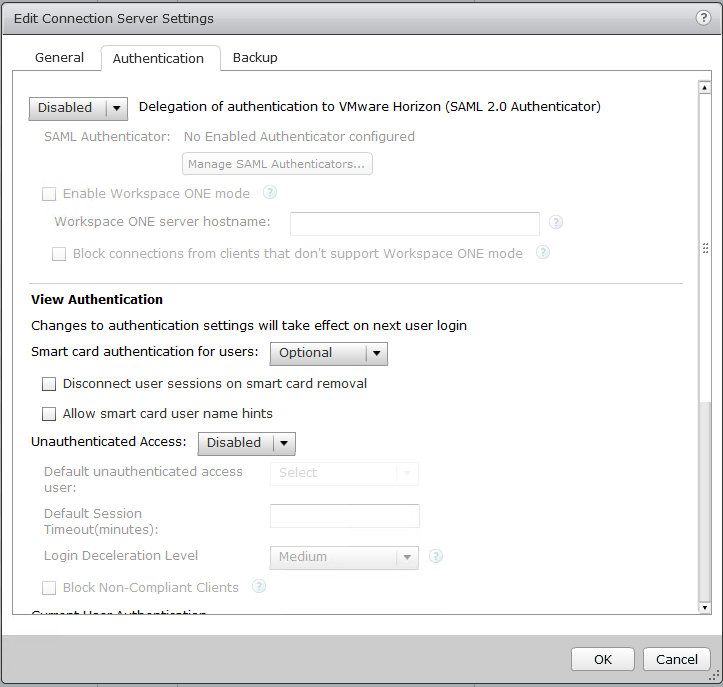

  5. On the “Edit Connection Server Settings” window, click on the “Authentication” tab.
    Authentication under Edit Connection Settings Window

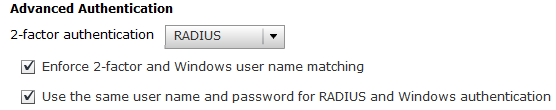

  6. Scroll down to the “Advanced Authentication” section, and change the “2-factor authentication” drop down, to “RADIUS”. Check both check boxes for “Enforce 2-factor and Windows user name matching”, and “Use the same user name and password for RADIUS and Windows Authentication”.
    Advanced Auth Settings for DUO in Authentication Tab Dialog Window
  7. Below the check boxes you will see “Authenticator”. Open the drop down, and select “Create New Authenticator”.

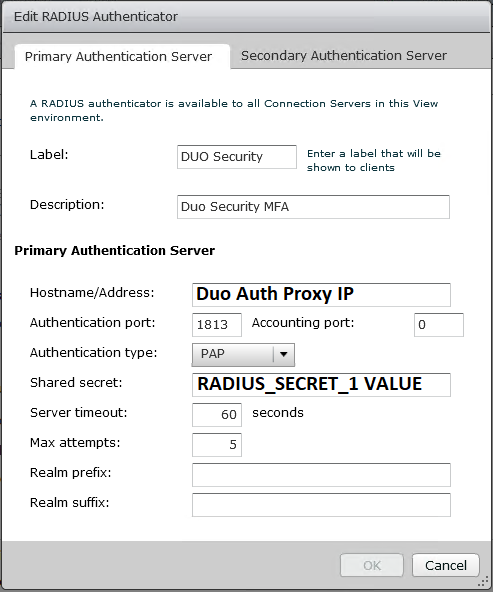

  8. In the “Add RADIUS Authenticator” window, give it a friendly name, friendly description, and populate the fields as specified in the screenshot below. You’ll be using the shared RADIUS/DUO secret we created above in the config file for the proxy auth.
    Edit RADIUS Authenticator VMware View Window
    Please Note that I changed the default RADIUS port in my config to 1813.
  9. Click “Ok”, then make sure the newly created authenticator is select in the drop down. Proceed to click “Ok” on the remaining windows, and close out of the web interface.

That’s it!

You have now completely implemented DUO MFA on your Horizon deployment. Now when users attempt to log on to your VMware View Connection server, after entering their credentials they will be prompted for a second factor of authentication as pictured below.

DUO Security Login VMware View Client Dialog Box
DUO Security Login VMware View Client
DUO Security MFA authenticate VMware View Client dialog box
DUO Security MFA authenticate VMware View Client

VMware Horizon View is now fully using MFA/2FA.

Leave a comment!
