Sep 252021

Windows Server 2022 Logo

Today, I will be showing you howto install, configure, and deploy Windows Server Update Services (WSUS) on Windows Server 2022. I’ll also show you how to use the WSUS MMC interface, approve/manage updates, and more!

This video will demonstrate the process of the WSUS role installation, post-installation tasks, first-time WSUS configuration wizard, and the WSUS MMC.

Check it out and feel free to leave a comment! Scroll down below for more information and details on the guide.

Who’s this guide for

This guide is perfect for a seasoned IT professional or a beginner who is looking at getting experience with Windows Server 2022.

What’s included in the video

In this guide I will walk you through the following:

  • Server Manager
    • Windows Server Update Services Role Installation
  • WSUS Considerations and Requirements
    • WID (Windows Internal Database)
    • SQL Express
    • GPO Group Policy Objects
    • WSUS Maintenance
    • Upstream and Downstream WSUS Servers
    • Bandwidth Optimization
  • WSUS Usage and Platform
    • WSUS Infrastructure Design
    • WSUS Synchronization Schedule
    • WSUS Language, Products, and Classifications selections
    • WSUS MMC Overview
    • “gpupdate /force” command usage
    • WSUS Update Approval
    • WSUS Reporting

Additional Information

Please see below (click to enlarge) for a WSUS GPO Configuration Example.

GPO Settings for WSUS Configuration
WSUS GPO Configuration Example

Please Note: This example contains configuration to automatically install updates. This example should only be used for workstations and not servers. Please use this example as a guide for your own study.

What’s required

To get started you’ll need:

  • 1 x Server (Virtual Machine or Physical Server)
  • Microsoft Windows Server 2022 Licensing
  • A running Windows Server 2022 Instance (OSE)
  • A network router and/or firewall

Hardware/Software used in this demonstration

  • VMware vSphere
  • HPE DL360p Gen8 Server
  • Microsoft Windows Server 2022
  • pfSense Firewall

Blog Posts mentioned in this video

May 162019


There may be a situation where you wish to completely reinstall WSUS from scratch. This can occur for a number of reasons, but most commonly is due to database corruption, or performance issues due to a WSUS database that hasn’t been maintained properly with the normal maintenance.

Commonly, when regular maintenance hasn’t occurred on a WSUS database, when an admin finally performs it, it can take days and weeks to re-index the database, clean up the database, and run the cleanup wizards.

Also, due to timeouts on IIS, the cleanup wizard may fail which could ultimately cause database corruption.

Administrators often want or choose to blast away their WSUS install, and completely start from scratch. I’ve done this numerous times in my own environment as well as numerous customer environments.

In this guide, we are going to assume that you’re running WSUS on a Windows Server that is dedicated to WSUS and is using the WID (Windows Internal Database) which is essentially a built-in version of SQL Express.

PLEASE NOTE: If you are using Microsoft SQL, these instructions will not apply to you and will require modification. Only use these instructions if the above applies to you.

What’s involved

WSUS (Windows Server Update Services) relies on numerous Windows roles and features to function. As part of the instructions we’ll need to completely clear out:

  • WSUS Role, Configuration, and Folders/Files
  • IIS Role, Configuration, and Folders/Files
  • WID Feature, Configuration, and Database Files

Since we are completely removing IIS (Role, Configuration, and Folders/Files), only proceed if the server is dedicated to WSUS. If you are using IIS for anything else, this will completely clear the configuration and files. You also do not want to run this on a domain controller as Active Directory also uses WID.

Let’s get to it!

Instructions

  1. Open “Server Manager” either on the host, or remotely and connect to the host you’d like to reinstall on.
  2. Open “Remove Roles and Features” wizard.
  3. Click “Next”, and select the Server, and click “Next” again.
  4. On the “Remove server roles” screen, under “Roles”, we want to de-select the following: “Web Server (IIS)” and “Windows Server Update Services” as shown below. Selecting WSUS and IIS Roles to be Removed
  5. Click “Next”
  6. On the “Remove features” screen, under “Features”, we want to de-select the following: “Windows Internal Database” and “Windows Process Activation Service” as shown below. Selecting WID and WPAS Features for Removal
  7. Click “Next” and follow the wizard to completion and remove the roles and features.
  8. Restart the Server.
  9. Open an administrative command prompt on the server, and run the command “powershell” or open powershell directly.
  10. Run the following command in powershell to remove any bits and pieces:
    Remove-WindowsFeature -Name UpdateServices,UpdateServices-DB,UpdateServices-RSAT,UpdateServices-API
  11. Restart the Server.
  12. We now must delete the WSUS folders and files. Delete the following folders:
    C:\WSUS
    C:\Program Files\Update Services

    Note: You may have stored the WSUS content directory somewhere else, please delete this as well.
  13. We now must delete the IIS folders and files (and configuration, including the WsusPool application pool, bindings, etc.). Delete the following folders:
    C:\inetpub
    C:\Windows\System32\inetsrv

    Note: You may have issues deleting the “inetsrv” directory. If this occurs, simply rename it to “inetsrv.bad”.
  14. We now must delete the WID (Windows Internal Database) folders and files (including the WSUS SQL Express database). Delete the following folder:
    C:\Windows\WID
  15. While we removed the IIS folders and files, we deleted a needed system file. Run the following command to restore the file:
    sfc /scannow
  16. Restart the Server.

WSUS, IIS, and WID have at this point been completely removed. We will now proceed to install, apply a memory fix, and configure WSUS.

For instructions on installing WSUS on Server Core, please click here: https://www.stephenwagner.com/2019/05/15/guide-using-installing-wsus-windows-server-core-2019/

  1. Open “powershell” (by typing powershell) and Install the WSUS Role with the following command:
    Install-WindowsFeature UpdateServices -Restart
  2. (Optional) If you want to install the WSUS MMC Snap-In/GUI, run the following command in the powershell window:
    Install-WindowsFeature UpdateServices-RSAT, UpdateServices-UI
  3. Run the post installation task command in command prompt to configure WSUS:
    "C:\Program Files\Update Services\Tools\wsusutil.exe" postinstall CONTENT_DIR=C:\WSUS
  4. AT THIS POINT DO NOT CONTINUE CONFIGURING WSUS AS YOU MUST APPLY A MEMORY FIX TO IIS.
  5. Apply the “Private Memory Limit (KB)” fix as provided here: https://www.stephenwagner.com/2019/05/14/wsus-iis-memory-issue-error-connection-error/
  6. Restart the Server.
  7. Open the WSUS MMC on the server or remotely from a workstation on the network and connect it to the WSUS instance on your Server Core install.
  8. Run through the wizard as you would normally and perform an synchronization.
  9. WSUS has been re-installed.

And that’s it. You’ve completely reinstalled WSUS from scratch on your Windows Server.

May 152019


Windows Server Core (on Windows Server 2019) is a great way to reduce the performance and security footprint of your servers. The operating system itself is minimalist and provides no GUI except for a command prompt, and some basic windows and tools.

All administration on Server Core must be performed via the command prompt, powershell, or remote administration tools (such as Server Manager, or the new Windows Admin Center.

Server Core provides a fantastic foundation for Windows Server Roles (roles that are integrated in the operating system), and can be installed with ease, managed remotely, and managed easily. It’s also nice too because you can allocate less CPU and RAM to virtual machines running Windows Server Core.

Getting started may be a bit tricky as you might need to learn and verse yourself with some commands, powershell, and remote management kung-fu, but overtime it’s easy!

Why WSUS?

I think I can speak for most admins out there when I say that a WSUS deployment typically consists of a single VM, with the WSUS, IIS, and WID roles installed.

WSUS is usually CPU and RAM intensive (when doing synchronizations), requires disk space, and doesn’t do much else. Because of the spikes, we usually keep this VM separate and don’t mix it with other LoBs or roles, with the exception of perhaps a file server.

Whether or not your VM runs WSUS alone, or also as a file server, since both of these roles are “Windows Roles and Features”, they are perfect to deploy on a Windows Server Core install.

There should be little administrative requirement on the WSUS server, other than re-indexing scripts, and cleanup scripts which can easily be ran from the command prompt, and the occasional Windows Update that will be installed.

Because you don’t require any 3rd party software, management consoles, or GUI related elements, it’s perfect for Server Core. By skipping on the GUI and applications, you’ll be able to allocate that memory, for WSUS/IIS itself.

How to Install and Configure WSUS on Windows Server Core

  1. Install Windows Server 2019 – Server Core
  2. Configure Network, Join to Domain, Update, etc.
  3. Open “powershell” (by typing powershell) and Install the WSUS Role with the following command:
    Install-WindowsFeature UpdateServices -Restart
  4. Exit powershell with “exit” and run the post installation task command in command prompt to configure WSUS:
    "C:\Program Files\Update Services\Tools\wsusutil.exe" postinstall CONTENT_DIR=C:\WSUS
  5. AT THIS POINT DO NOT CONTINUE CONFIGURING WSUS AS YOU MUST APPLY A MEMORY FIX TO IIS.
  6. Enable Remote IIS Management to manage and modify IIS config (to apply the memory fix below), as provided here: https://www.stephenwagner.com/2019/05/14/manage-remotely-iis-on-windows-server-2019-server-core/
  7. Apply “Private Memory Limit (KB)” fix as provided here: https://www.stephenwagner.com/2019/05/14/wsus-iis-memory-issue-error-connection-error/
  8. Install the “Windows Server Update Services” mmc applet which is included in the Windows 10 RSAT tools. Instructions to install the RSAT are provided here: https://www.stephenwagner.com/2018/10/05/windows-10-1809-october-update-rsat/
  9. Open the WSUS MMC on a server or workstation on the network and connect it to the WSUS instance on your Server Core install.
  10. Run through the wizard as you would normally and perform an synchronization.
  11. Modify your GPO to point your servers and workstations towards your WSUS server.
  12. Enable Windows Update “Features on Demand” and “Turn Windows features on or off” via GPO as provided here:
    https://www.stephenwagner.com/2018/10/08/enable-windows-update-features-on-demand-and-turn-windows-features-on-or-off-in-wsus-environments/
  13. Install the “sqlcmd” command so you can regularly run the WSUS re-index script, as provided here: https://www.stephenwagner.com/2019/05/14/run-wsus-cleanup-index-script-windows-server-core-without-sql-management-studio/

You’re done!

Don’t forget to regularly re-index your WSUS database and perform the routine maintenance!

Tips n Tricks

  • Need to view, modify, cut/paste, or delete files and folders? Open up notepad from the command prompt to get a simple GUI where you can do this.
  • CTRL + SHIFT + ESC will open a Task Manager to monitor the Server Core install
  • You can use “Server Manager” remotely to manage the Server Core install after you’ve enabled it inside of “sconfig”.
May 142019


You’re running WSUS (Windows Server Update Services) on Windows Server 2019 Server Core, and you want to run the WSUS Re-Index or WSUS Cleanup script, but you can’t because you cannot install the SQL Management Studio on Windows Server Core.

Well, there’s a way around this. To run SQL scripts on the WID (Windows Internal Database) on Windows Server Core, we’ll need to install “sqlcmd” (info here).

Now normally with Microsoft SQL, you’d simply connect remotely using the SQL Management Studio, and you can if you’re using fully blown Microsoft SQL Server with your WSUS implementation, however most of us aren’t. In most small deployments, WSUS is configured using WID (Windows Internal Database) which is essentially Microsoft SQL Express.

Microsoft SQL Express doesn’t support remote named pipe connections, and there’s no easy way to configure TCP connections with the registry editor, so the easiest way to accomplish executing SQL scripts is to install and use the “sqlcmd”.

Instructions

Install the SQLCMD command utility

  1. First we need to identify the version of SQL express that’s running WID on the server running Windows Server Core 2019.
  2. Open “notepad” and open the following file which containts the WID log.
    C:\Windows\WID\Log\error
  3. At the beginning of the log file, you’ll note the Microsoft SQL version that’s running. In my case it’s “Microsoft SQL Server 2014 (SP2-GDR)” specifically 12.0.5214.6 as shown below.
    2019-05-14 10:52:47.79 Server      Microsoft SQL Server 2014 (SP2-GDR) (KB4057120) - 12.0.5214.6 (X64)
    	Jan  9 2018 15:03:12
    	Copyright (c) Microsoft Corporation
    	Windows Internal Database (64-bit) on Windows NT 6.3  (Build 17763: ) (Hypervisor)
  4. The “sqlcmd” is part of the Microsoft SQL Server Feature Pack, so a quick search of “SQL Server 2014 SP2 Feature Pack” returned the following URL:
    https://www.microsoft.com/en-us/download/details.aspx?id=53164
  5. When you click download, you’ll notice multiple files. Choose the ”
    ENU\x64\MsSqlCmdLnUtils.msi” file to download.
  6. Copy this file over to your server running Windows Server Core.
  7. Execute and run the installer. Follow the prompts.
  8. You’ll notice the installer will error and require “Microsoft ODBC Driver 11 for SQL Server”. A quick search finds this download:
    https://www.microsoft.com/en-ca/download/details.aspx?id=36434
  9. Download the above file, install the “Microsoft ODBC Driver 11 for SQL Server”.
  10. Re-start the “MsSqlCmdLnUtils.msi” installer, and it should now complete.
  11. You have now installed the SQLcmd utility.

Run the WSUS Re-Index Script

  1. Download the WSUS Database Re-Index script from:
    https://gallery.technet.microsoft.com/scriptcenter/6f8cde49-5c52-4abd-9820-f1d270ddea61
  2. Copy the script to the server.
  3. Run the following command from the command prompt:
    sqlcmd -S np:\\.\pipe\Microsoft##WID\tsql\query –i C:\Folder\WsusDBMaintenance.sql

You’ve officially installed the sqlcmd and ran the WSUS Re-Index script on Windows Server Core. Congratulations!

May 142019


On a fresh or existing WSUS install, you may notice that the WSUS Administrator MMC applet stops functioning and present the error “Error: Connection Error – An error occurred trying to connect to the WSUS Server.”

I originally experienced this on Windows Server Update Services running on Windows Server 2012 R2 and applied the fix. Recently, I deployed Windows Server Update Services on a new Windows Server 2019 – Server Core install, and experienced this issue during the first synchronization. Before realizing what the issue was, I attempted to re-install WSUS and IIS from scratch numerous times until I came across old notes. One would have thought they would have resolved this issue on a new server operating system.

When the issue occurs, all processes will appear to be running on the server. Looking at the server event log, you’ll notice multiple application errors:

  • Event ID: 13042 - Windows Server Update Services
    Description: Self-update is not working.
  • Event ID: 12002 - Windows Server Update Services
    Description: The Reporting Web Service is not working.
  • Event ID: 12012 - Windows Server Update Services
    Description: The API Remoting Web Service is not working.
  • Event ID: 12032 - Windows Server Update Services
    Description: The Server Synchronization Web Service is not working.
  • Event ID: 12022 - Windows Server Update Services
    Description: The Client Web Service is not working.
  • Event ID: 12042 - Windows Server Update Services
    Description: The SimpleAuth Web Service is not working.
  • Event ID: 12052 - Windows Server Update Services
    Description: The DSS Authentication Web Service is not working.
  • Event ID: 12072 - Windows Server Update Services
    Description: The WSUS content directory is not accessible.
    System.Net.WebException: The remote server returned an error: (503) Server Unavailable.
       at System.Net.HttpWebRequest.GetResponse()
       at Microsoft.UpdateServices.Internal.HealthMonitoring.HmtWebServices.CheckContentDirWebAccess(EventLoggingType type, HealthEventLogger logger)

You will also see the below error message when attempting to use the WSUS MMC.

WSUS Connection Error presented when memory issue occurs
WSUS 503 Error: Connection Error

The Problem

This issue occurs because the WSUS application pool in IIS “WsusPool” has reached it’s maximum private memory limit and attempts to recycle the memory usage.

Ultimately I believe this causes the IIS worker process to crash since it has run out of memory, and the pending command (whether it’s a synchronization or something else) fails to complete.

Previously, I noticed database corruption on a WSUS SQL Express database when this issue occurred, so I recommend applying the fix on a fresh install of WSUS.

The Fix

To resolve this issue, we need to adjust the max

  1. On the server running WSUS and IIS, open the “Internet Information Services (IIS) Manager” inside of the “Windows Administrative Tools” (found in the start menu, or Control Panel).
    Internet Information (IIS) Services in Start Menu

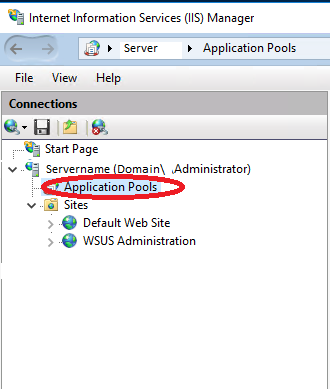

  2. On the left hand side under “Connections”, expand the server, and select “Application Pools”.
    IIS Application Pools Selected

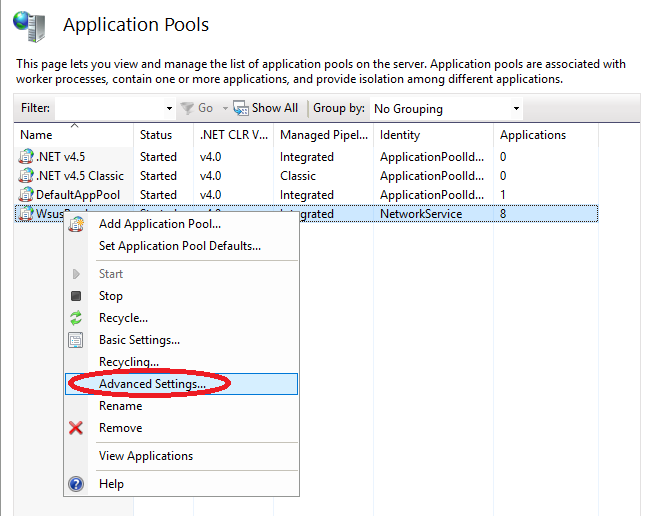

  3. On the right hand side under “Application Pools” heading, right-click on “WsusPool” and select “Advanced Settings”.
    WsusPool Application Pool Selected with Right-Click

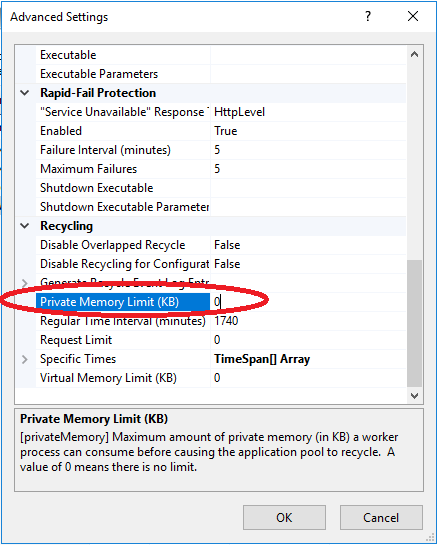

  4. In the “Advanced Settings” window, scroll down until you see “Private Memory Limit (KB)”. Either change this to “0” (as shown below) to set no memory limit, or increase the limit to the value you prefer.
    Private Memory Limit set to "0" in WsusPool IIS Application Pool
  5. Select “Ok” to close the window.
  6. Restart IIS by running “iisreset” from an administrative command prompt, restarting the server, or selecting “Restart” under “Manage Server” when looking at the default pane in IIS when the server is selected.

The issue should now be resolved and your WSUS server should no longer be crashing.

If you are applying this fix on a Server Core install, you’ll need to connect remotely to the IIS instance to apply the fix.
