Jun 192022

VMware vSphere 7 Logo

We all know that vMotion is awesome, but what is even more awesome? Optimizing VMware vMotion to make it redundant and faster!

vMotion allows us to migrate live Virtual Machines from one ESXi host to another without any downtime. This allows us to perform physical maintenance on the ESXi hosts, update and restart the hosts, and also load balance VMs across the hosts. We can even take this a step further use DRS (Distributed Resource Scheduler) automation to intelligently load the hosts on VM boot and to dynamically load balance the VMs as they run.

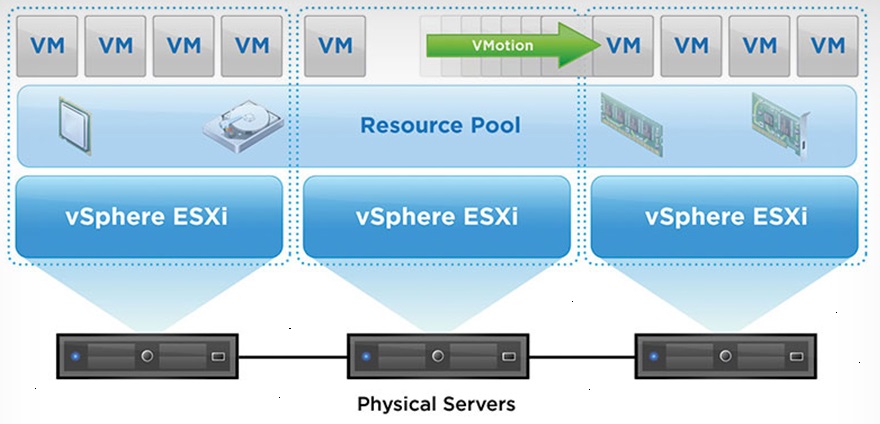

Picture of VMware vMotion diagram
VMware vMotion

In this post, I’m hoping to provide information on how to fully optimize and use vMotion to it’s full potential.

VMware vMotion

Most of you are probably running vMotion in your environment, whether it’s a homelab, dev environment, or production environment.

I typically see vMotion deployed on the existing data network in smaller environments, I see it deployed on it’s own network in larger environments, and in very highly configured environments I see it being used with the vMotion TCP stack.

While you can preform a vMotion with 1Gb networking, you certainly almost always want at least 10Gb networking for the vMotion network, to avoid any long running VMs. Typically most IT admins are happy with live migration vMotion’s in the seconds, and not the minutes.

VMware vMotion Optimization

So you might ask, if vMotion is working and you’re satisfied, what is there to optimize? There’s actually a few things, but first let’s talk about what we can improve on.

We’re aiming for improvements with:

  • Throughput/Speed
    • Faster vMotion
      • Faster Speed
      • Less Time
    • Migrate more VMs
      • Evacuate hosts faster
      • Enable more aggressive DRS
      • Migrate many VMs at once very quickly
  • Redundancy
    • Redundant vMotion Interfaces (NICs and Uplinks)
  • More Complex vMotion Configurations
    • vMotion over different subnets and VLANs
      • vMotion routed over Layer 3 networks

To achieve the above, we can focus on the following optimizations:

  1. Enable Jumbo Frames
  2. Saturation of NIC/Uplink for vMotion
  3. Multi-NIC/Uplink vMotion
  4. Use of the vMotion TCP Stack

Let’s get to it!

Enable Jumbo Frames

I can’t stress enough how important it is to use Jumbo Frames for specialized network traffic on high speed network links. I highly recommend you enable Jumbo Frames on your vMotion network.

Note, that you’ll need to have a physical switch and NICs that supports Jumbo frames.

In my own high throughput testing on a 10Gb link, without using Jumbo frames I was only able to achieve transfer speeds of ~6.7Gbps, whereas enabling Jumbo Frames allowed me to achieve speeds of ~9.8Gbps.

When enabling this inside of vSphere and/or ESXi, you’ll need to make sure you change and update the applicable vmk adapter, vSwitch/vDS switches, and port groups. Additionally as mentioned above you’ll need to enable it on your physical switches.

You may assume that once you configure a vMotion enabled NIC, that when performing migrations you will be able to fully saturate it. This is not necessarily the case!

When performing a vMotion, the vmk adapter is bound to a single thread (or CPU core). Depending on the power of your processor and the speed of the NIC, you may not actually be able to fully saturate a single 10Gb uplink.

In my own testing in my homelab, I needed to have a total of 2 VMK adapters to saturate a single 10Gb link.

If you’re running 40Gb or even 100Gb, you definitely want to look at adding multiple VMK adapters to your vMotion network to be able to fully saturate a single NIC or Uplink.

You can do this by simply configuring multiple VMK adapters per host with different IP addresses on the same subnet.

One important thing to mention is that if you have multiple physical NICs and Uplinks connected to your vMotion switch, this change will not help you utilize multiple physical interfaces (NICs/Uplinks). See “Multi-NIC/Uplink vMotion”.

Please note: As of VMware vSphere 7 Update 2, the above is not required as vMotion has been optimized to use multiple streams to fully saturate the interface. See VMware’s blog post “Faster vMotion Makes Balancing Workloads Invisible” for more information.

Multi-NIC/Uplink vMotion

Another situation is where we may want to utilize multiple NICs and Uplinks for vMotion. When implemented correctly, this can provide load balancing (additional throughput) as well as redundancy on the vMotion network.

If you were to simply add additional NIC interfaces as Uplinks to your vMotion network, this would add redundancy in the event of a failover but it wouldn’t actually result in increased speed or throughput as special configuration is required.

To take advantage of the additional bandwidth made available by additional Uplinks, we need to specially configure multiple portgroups on the switch (vSwitch or vDS Distributed Switch), and configure each portgroup to only use one of the Uplinks as the “Active Uplink” with the rest of the uplinks under “Standby Uplink”.

Example Configuration

  • vSwitch or vDS Switch
    • Portgroup 1
      • Active Uplink: Uplink 1
      • Standby Uplinks: Uplink 2, Uplink 3, Uplink 4
    • Portgroup 2
      • Active Uplink: Uplink 2
      • Standby Uplinks: Uplink 1, Uplink 3, Uplink 4
    • Portgroup 3
      • Active Uplink: Uplink 3
      • Standby Uplinks: Uplink 1, Uplink 2, Uplink 4
    • Portgroup 4
      • Active Uplink: Uplink 4
      • Standby Uplinks: Uplink 1, Uplink 2, Uplink 3

You would then place a single or multiple vmk adapters on each of the portgroups per host, which would result in essentially mapping the vmk(s) to the specific uplink. This will allow you to utilize multiple NICs for vMotion.

And remember, you may not be able to fully saturate a NIC interface (as stated above) with a single vmk adapter, so I highly recommend creating multiple vmk adapters on each of the Port groups above to make sure that you’re not only using multiple NICs, but that you can also fully saturate each of the NICs.

For more information, see VMware’s KB “Multiple-NIC vMotion in vSphere (2007467)“.

Use of the vMotion TCP Stack

VMware released the vMotion TCP Stack to provided added security to vMotion capabilities, as well as introduce vMotion over multiple subnets (routed vMotion over layer 3).

Using the vMotion TCP Stack, you can isolate and have the vMotion network using it’s own gateway separate from the other vmk adapters using the traditional TCP stack on the ESXi host.

This stack is optimized for vMotion.

Please note, that troubleshooting processes may be different when Troubleshooting vMotion using the vMotion TCP/IP Stack (click the link for my blog post on troubleshooting).

For more information, see VMware’s Documentation on “vMotion TCP/IP Stack“.

Additional resources:

VMware – How to Tune vMotion for Lower Migration Times?

Jun 182022

Nvidia GRID Logo

When performing a VMware vMotion on a Virtual Machine with an NVIDIA vGPU attached to it, the VM may freeze during migration. Additionally, when performing a vMotion on a VM without a vGPU, the VM does not freeze during migration.

So why is it that adding a vGPU to a VM causes it to become frozen during vMotion? This is referred to as the VM Stun Time.

I’m going to explain why this happens, and what you can do to reduce these STUN times.

VMware vMotion

First, let’s start with traditional vMotion without a vGPU attached.

VMware vMotion with vSphere and ESXi
VMware vMotion with vSphere

vMotion allows us to live migrate a Virtual Machine instance from one ESXi host, to another, with (visibly) no downtime. You’ll notice that I put “visibly” in brackets…

When performing a vMotion, vSphere will migrate the VM’s memory from the source to destination host and create checkpoints. It will then continue to copy memory deltas including changes blocks after the initial copy.

Essentially vMotion copies the memory of the instance, then initiates more copies to copy over the changes after the original transfer was completed, until the point where it’s all copied and the instance is now running on the destination host.

VMware vMotion with vGPU

For some time, we have had the ability to perform a vMotion with a VM that as a GPU attached to it.

VMware vSphere with NVIDIA vGPU
VMware VMs with vGPU

However, in this situation things work slightly different. When performing a vMotion, it’s not only the system RAM memory that needs to be transferred, but the GPU’s memory (VRAM) as well.

Unfortunately the checkpoint/delta transfer technology that’s used with then system RAM isn’t available to transfer the GPU, which means that the VM has to be stunned (frozen) to stop it so that the video RAM can be transferred and then the instance can be initialized on the destination host.

STUN Time

The STUN time is essentially the time it takes to transfer the video RAM (framebuffer) from one host to another.

When researching this, you may find examples of the time it takes to transfer various sizes of VRAM. An example would be from VMware’s documentation “Using vMotion to Migrate vGPU Virtual Machines“:

NVIDIA vGPU Estimated STUN Times
Expected STUN Times for vMotion with vGPU on 10Gig vMotion NIC

However, it will always vary depending on a number of factors. These factors include:

  • vMotion Network Speed
  • vMotion Network Optimization
    • Multi-NIC vMotion to utilize multiple NICs
    • Multi-vmk vMotion to optimize and saturate single NICs
  • Server Load
  • Network Throughput
  • The number of VM’s that are currently being migrated with vMotion

As you can see, there’s a number of things that play in to this. If you have a single 10Gig link for vMotion and you’re migrating many VMs with a vGPU, it’s obviously going to take longer than if you were just migrating a single VM with a vGPU.

Optimizing and Minimizing vGPU STUN Time

There’s a number of things we can look at to minimize the vGPU STUN times. This includes:

  • Upgrading networking throughput with faster NICs
  • Optimizing vMotion (Configure multiple vMotion VMK adapters to saturate a NIC)
  • Configure Multi-NIC vMotion (Utilize multiple physical NICs to increase vMotion throughput)
  • Reduce DRS aggressiveness
  • Migrate fewer VMs at the same time

All of the above can be implemented together, which I would actually recommend.

In short, the faster we migrate the VM, the less the STUN Time will be. Check out my blog post on Optimizing VMware vMotion which includes how to perform the above recommendations.

Hope this helps!
